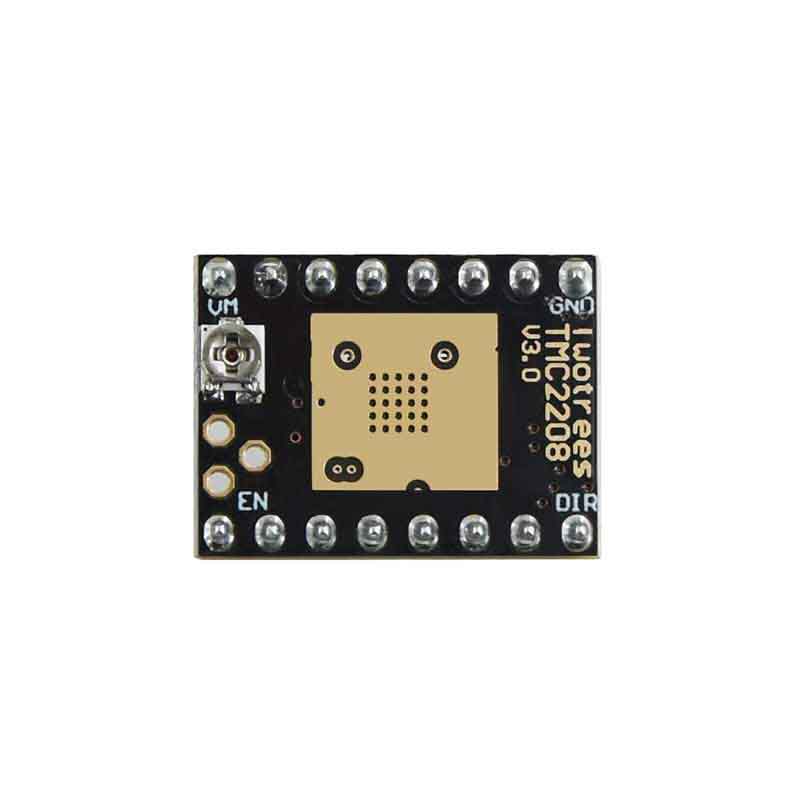

TMC2208 V3 Stepper Motor Driver Module with heatsink

Stepper Motor Driver TMC2208 V3 has including heatsink. built-in drive current 1.4A peak current 2A, voltage range 4.75V-36V, 256
subdivision; with patented technology spreadCycle ™ high chopper
frequency, dcStep ™, stallGuard2 ™ stall detection technology, CoolStep ™ current dynamic adjustment technology, can save 70% of the energy, StealthChop mute technology.

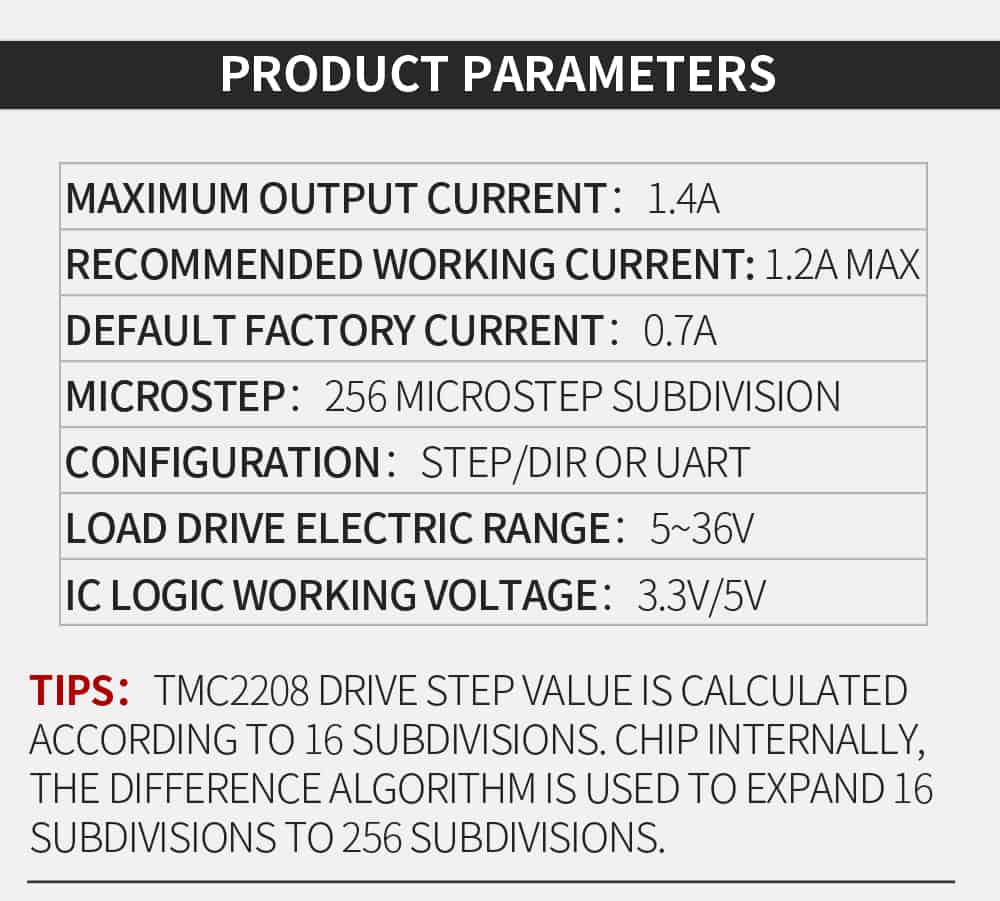

Specifications –

• Driver – TMC2208 V3
• Operating Voltage Supply: 4.75V ~ 28V
• Peak Current: 2A
• micro-step mode options: up to 1/256.
• StealthChop2™ silent motor operation.
• SpreadCycle™ highly dynamic motor control chopper.

Package includes –

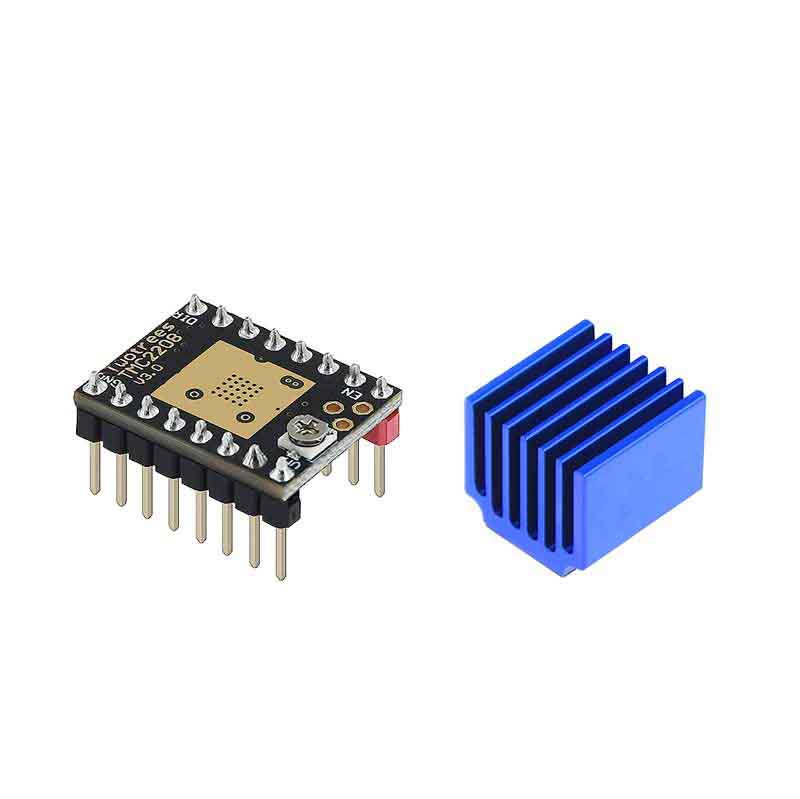

1 x TMC2208 Stepper Motor Driver with heatsink

TMC2208 Datasheet
