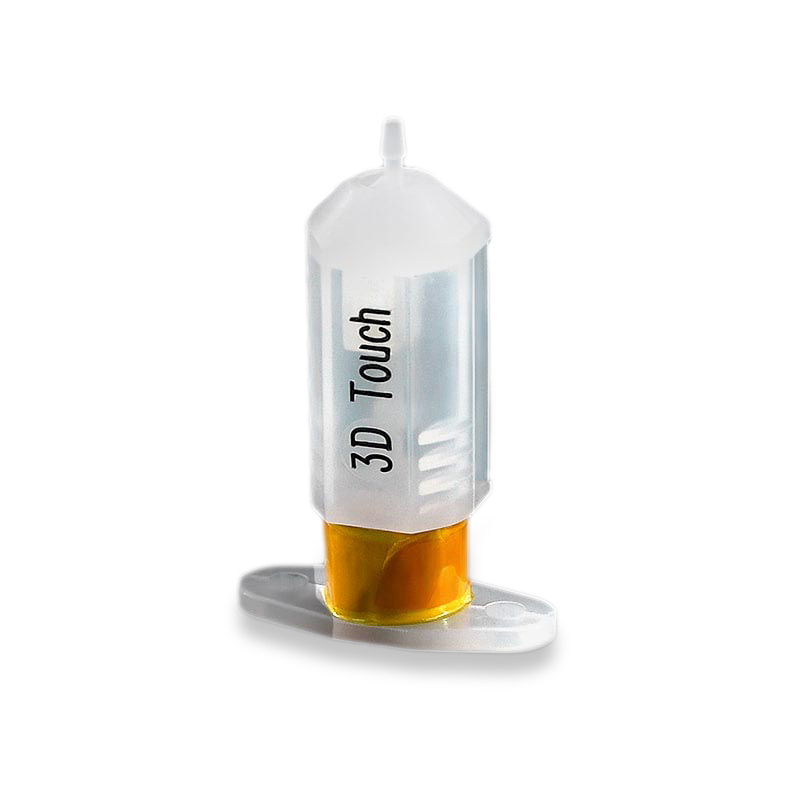

The 3DTouch Automatic Leveling Sensor is a device that uses the hall effect to achieve leveling. You can get the position of the point by touching it on the hed bed. Compensate by adjusting the height of the z-axis, so that printing can be achieved even when the platform is uneven.
Product Feature :
- INTELLIGENT LEVELING, INTELLIGENT cOMPENSATION OF Z AXIS HEIGHT, MAKING PRINTING EASIER.
- ACCURATE MEASUREMENT, SMALL ERROR, EXTREMELY HIGH LEVELING ACCURACY.
- INJECTION PROBE, LIGHT AND FLEXIBLE
- SMD POSITIONING SENSOR, HIGHER CONSISTENCY
- BRAND NEW TRANSLUCENT WHITE PC SHELL, MORE BEAUTIFUL
3D Touch Specification :
- Voltage : 5V.
- Â Current : 15mA.
- Â Maximum(Peak) Current : 300mA.
- Â Case Material : Â Polycarbonat(PC).
- Â PCB & Soldering : RoHS, Lead Free (Pb Free).
Operate condition :
- One I/O for control (PWM or Software PWM).
- One I/O for Z min (Z Probe).
- GND and +5V power.
Zahid Shah (verified owner) –
Overall pretty great. first of all if it isnt obvious this is a 3d touch clone but it works just as well as the geniune thing, i used it on my ender 3 v2 i can confirm that it has self test, error detection and HS mode capabilities,the cable is short for the ender 3 v2, so i had to extend it (you need about 140cm). i just wish they sold the replacement tips for it, since its plastic it might break if a print goes wrong or something.
